xEV (HV/LV DC-DC)

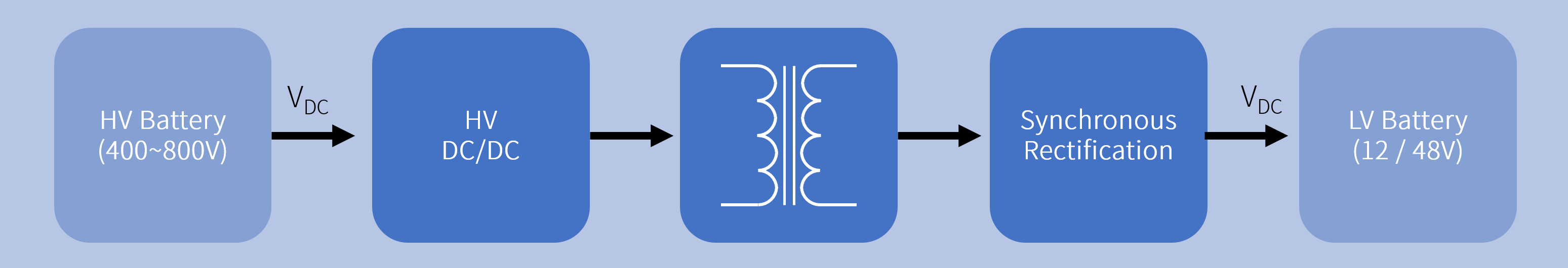

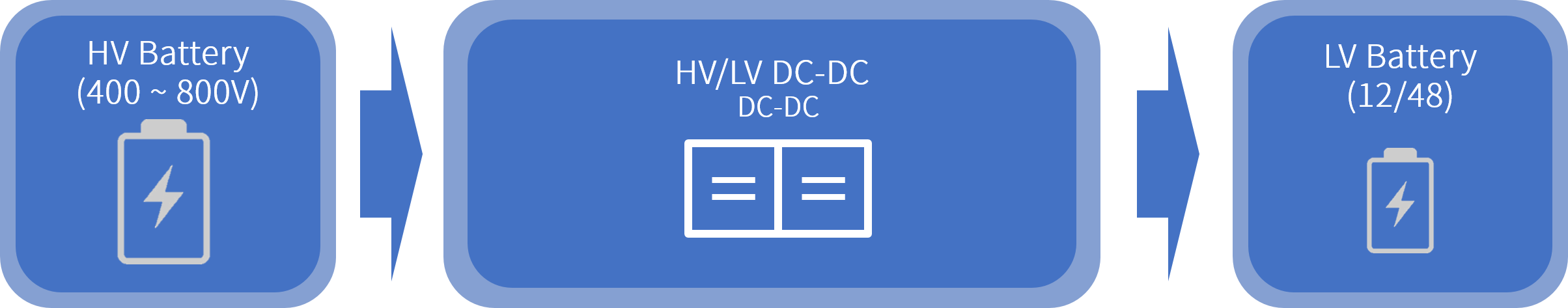

There are various loads such as electric power steering, fans, body control module and lift gate or window that cannot directly operate from the high voltage battery of the PHEV(Plug-in hybrid electric vehicles) and battery electric vehicles(BEV). HV/LV DC-DC block convert to high voltage battery(400~800V) to the low voltage battery(12/48V). The requirements are similar to DC-DC stage of on-bard charger(OBC).
There are requirements to integrate OBC and HV/LV DC-DC for weight and size optimization and cost reduction.
Typical HV/LV DC-DC power rating is 1.5kW~4kW for various loads in EV.

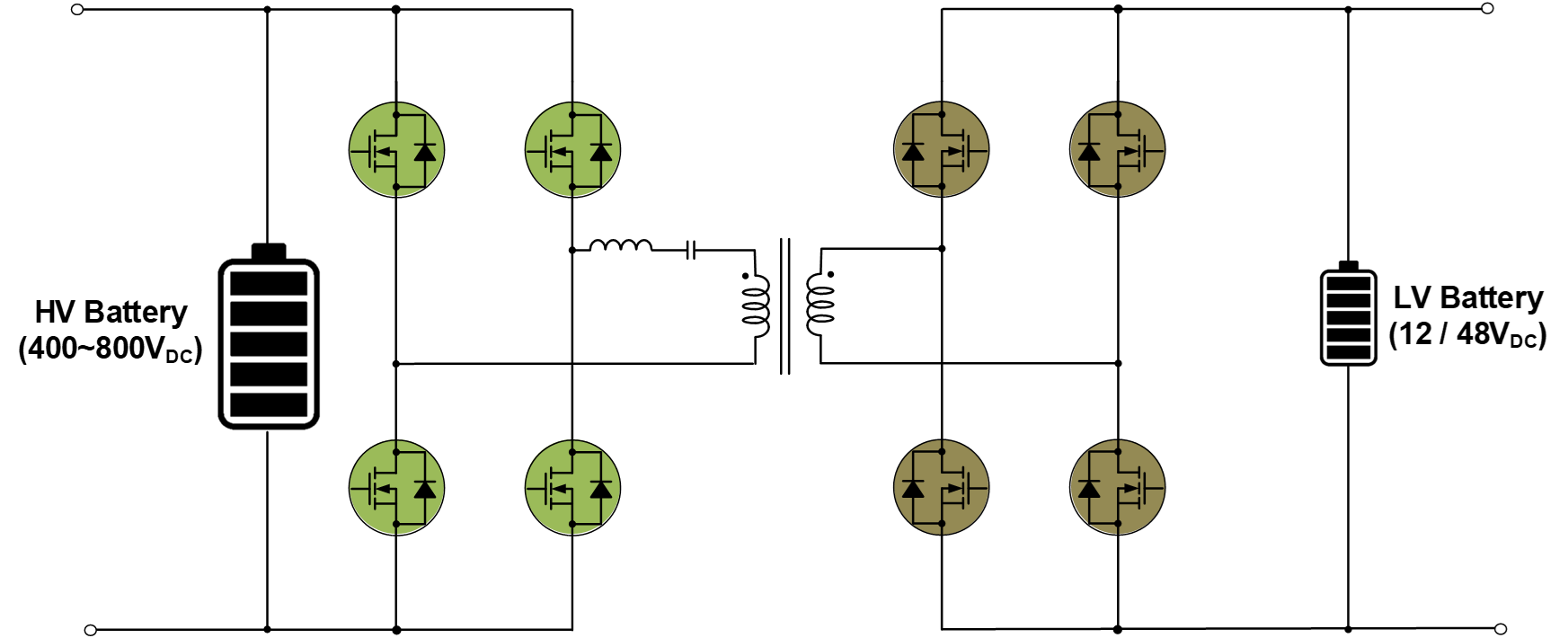

Topology Trend
ZVS PSFB → LLC resonant converter
| Output Power | 1.5kW ~ 4kW |
|---|---|
| Input / Output Voltage | 400~800VDC / 12~48VDC |
| Switching Freq. | DC-DC : > 100kHz |
| System Requirement |
High System Efficiency Power limited (4kW) by cost / size High Power Density (Small form factor) Coverage wide input/output range battery voltage (800V ↔12V/48V) |
Device Solution
| System Block | Topology | Product Category | PMS Solution |
|---|---|---|---|
| DC-DC (Primary) |
ZVS PSFB or LLC | 600/650V SJ MOSFETs (400V Batt.) | 600/650V e MOS |
| 650V SiC MOSFETs (400V Batt.) 1200V SiC MOSFETs (800V Batt.) |
650V e SiC MOSFET 1200V e SiC MOSFET |
||
| DC-DC (Secondary) | Synchronous Rectification | 60~150V MV MOSFETs | 60~150V e MOS |
| LLC (Primary) for 400VDC - Recommended Products | ||
|---|---|---|
| e SiC MOSFET | *PCZ65N27M1-A *PCZ65N48M1-A *PCBF65N27M1-A *PCBF65N48M1-A |
650V / 27mΩ, TO-247-4L 650V / 48mΩ, TO-247-4L 650V / 27mΩ, D2PAK-7L 650V / 48mΩ, D2PAK-7L |
| e MOSF7 | *PMW60N030F7-A *PMW60N043F7-A *PMW65N043F7-A *PMW60N075F7-A |
600V / 30mΩ, TO-247 600V / 43mΩ, TO-247 650V / 43mΩ, TO-247 600V / 75mΩ, TO-247 |
| LLC (Primary) for 800VDC - Recommended Products | ||
|---|---|---|
| e SiC MOSFET | *PCZ120N21M1-A *PCZ120N30M1-A *PCZ120N40M1-A *PCZ120N60M1-A *PCZ120N80M1-A *PCBF120N21M1-A *PCBF120N30M1-A *PCBF120N40M1-A *PCBF120N60M1-A *PCBF120N80M1-A |
1200V / 21mΩ, TO-247-4L 1200V / 30mΩ, TO-247-4L 1200V / 40mΩ, TO-247-4L 1200V / 60mΩ, TO-247-4L 1200V / 80mΩ, TO-247-4L 1200V / 21mΩ, D2PAK-7L 1200V / 30mΩ, D2PAK-7L 1200V / 40mΩ, D2PAK-7L 1200V / 60mΩ, D2PAK-7L 1200V / 80mΩ, D2PAK-7L |
| LLC (Secondary) - Recommended Products | ||
|---|---|---|
| 60V e MOS(for 12VDC) | *PSS06N1P2(L)G1-A *PSS06N1P8LG1-A *PSS06N2P5LG1-A |
60V / 1.2mΩ, PQFN56 60V / 1.8mΩ, PQFN56 60V / 2.5mΩ, PQFN56 |
| 150V e MOS(for 48VDC) | *PSS15N7P5G1-A *PSS15N8P8G1-A *PSS15N11G1-A |
150V / 7.5mΩ, PQFN56 150V / 8.8mΩ, PQFN56 150V / 11mΩ, PQFN56 |
