Energy Storage System (ESS) – Power Conversion System (PCS)

As demand of energy self consumption and independence of gird increase, Energy storage systems (ESS) combined with renewable energy are one of the MOSt critical components that is leading the change of the entire energy industry. ESS demands will be increased when recycled battery cell that are sorted from electric vehicles is rapidly increased. ESS can be coupled with various energy supply chain such as solar inverter, UPS and EV chargers

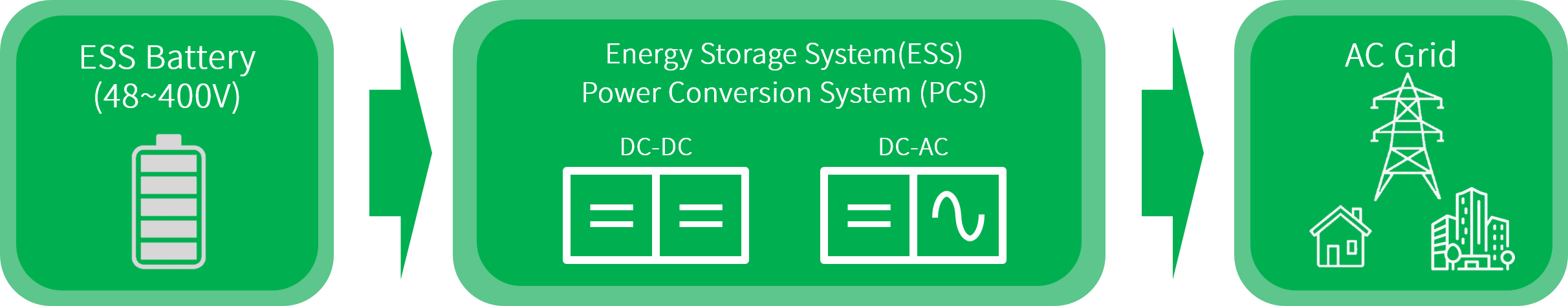

ESS power conversion system is bi-directional for both charging and backup mode. Residential ESS combined with solar panels is broadly categorized into DC- or AC-coupled systems

Typical power rating of residential ESS is 3kW~12kW.

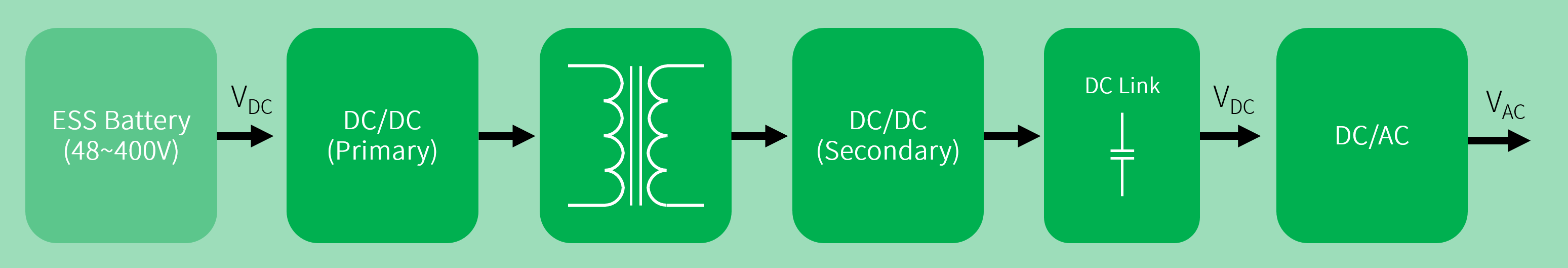

ESS - POWER CONVERSION SYSTEM (PCS) BLOCK
Output Power 3kW ~ 12kW for single phase output (Residential), < 12kW for 3 phase output (Commercial)
Input / Output Voltage 48~800VDC / 1Φ 110~230VAC, 3Φ 400VAC
Switching Freq. PFC : 60 ~ 100 kHz, DC-DC : > 100kHz
System Requirement

High System Efficiency

Bi-directional operation

High Power Density (Small form factor)

Coupling system with Solar System

Cost Reduction (Lower $ per Watt)

Device Solution

System Block Topology Product Category PMS Solution
DC-DC CLLC or DAB 600/650V SJ MOSFETs 600/650V e MOS
650V SiC MOSFETs 650V e SiC MOSFET
150V MV MOSFETs 150V e MOS
DC-AC Totem-pole 600/650V SJ MOSFETs 600/650V e MOS
650V SiC MOSFETs 650V e SiC MOSFET
DEVICE SOLUTION FOR ESS POWER CONVERSION SYSTEM (PCS) (1Φ)
DC-DC CLLC - Recommended Products
e SiC MOSFET *PCZ65N27M1
*PCZ65N48M1
*PCZ65N72M1
650V / 27mΩ, TO-247-4L
650V / 48mΩ, TO-247-4L
650V / 72mΩ, TO-247-4L
e MOS F7 *PMW60N030F7
*PMW60N043F7
*PMW65N043F7
*PMW60N075F7
600V / 30mΩ, TO-247
600V / 43mΩ, TO-247
650V / 43mΩ, TO-247
600V / 75mΩ, TO-247
150V e MOS *PSS15N7P5G1
*PSS15N8P8G1
150V / 7.5mΩ, PQFN56
150V / 8.8mΩ, PQFN56
DC-AC Totem-pole - Recommended Products
e SiC MOSFET *PCZ65N27M1
*PCZ65N48M1
*PCZ65N72M1
650V / 27mΩ, TO-247-4L
650V / 48mΩ, TO-247-4L
650V / 72mΩ, TO-247-4L
e MOS F7 *PMW60N030F7
*PMW60N043F7
*PMW65N043F7
*PMW60N075F7
600V / 30mΩ, TO-247
600V / 43mΩ, TO-247
650V / 43mΩ, TO-247
600V / 75mΩ, TO-247
* Comming soon
DEVICE SOLUTION FOR ESS POWER CONVERSION SYSTEM (PCS) (3Φ)
DC-DC CLLC - Recommended Products
e SiC MOSFET *PCZ65N27M1
*PCZ65N48M1
*PCZ65N72M1
650V / 27mΩ, TO-247-4L
650V / 48mΩ, TO-247-4L
650V / 72mΩ, TO-247-4L
e MOS F7 *PMW60N030F7
*PMW60N043F7
*PMW65N043F7
*PMW60N075F7
600V / 30mΩ, TO-247
600V / 43mΩ, TO-247
650V / 43mΩ, TO-247
600V / 75mΩ, TO-247
150V e MOS *PSS15N7P5G1
*PSS15N8P8G1
150V / 7.5mΩ, PQFN56
150V / 8.8mΩ, PQFN56
DC-AC Totem-pole - Recommended Products
e SiC MOSFET *PCW120N21M1
*PCW120N30M1
*PCW120N40M1
*PCW120N60M1
PCW120N80M1
*PCZ120N21M1
*PCZ120N30M1
*PCZ120N40M1
*PCZ120N60M1
*PCZ120N80M1
1200V / 21mΩ, TO-247-3L
1200V / 30mΩ, TO-247-3L
1200V / 40mΩ, TO-247-3L
1200V / 60mΩ, TO-247-3L
1200V / 80mΩ, TO-247-3L
1200V / 21mΩ, TO-247-4L
1200V / 30mΩ, TO-247-4L
1200V / 40mΩ, TO-247-4L
1200V / 60mΩ, TO-247-4L
1200V / 80mΩ, TO-247-4L
* Comming soon
